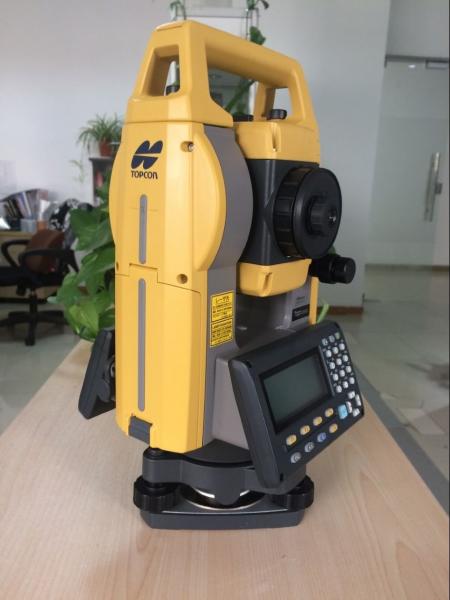

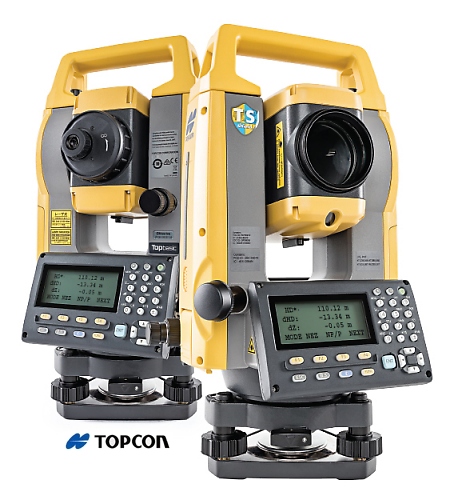

Spesifikasi GM-100

• Resolution/ Accuracy
• GM-101 : 1”/5”
• IACS : Standard on 1” and 2” models
• Compensation : Dual-axis compensator
• Prism EDM Range : 6,000 m
• Prism EDM Accuracy : 1,5 mm + 2 ppm
• Non-Prism Range : 1,000 m
• Non-Prism Accuracy : 2 mm + 2 ppm I (0,3 – 200 m)
• Measuring Time Fine : 0,9 sec I Rapid : 0,6 sec I Tracking : 0,4 sec
• LongLinkTM is not supported
• USB 2.0 Slot (Host)
• RS-232C Serial
• Display Single Backlit LCD I (Dual display optional)
• Battery Operation : Up to 28 hours
• Dust/ Water Rating : IP66
• Wireless Connection : Bluetooth® Class 1,5/10 m
• Operating Temp : -20°C to 60°C
